Brick Making Machine
1. Clay Brick Making Machine
a The Flow of Complete Line:
Box Feeder—Rubber Belt Conveyor—Double-Roller Crusher—Double-Shaft Mixer—Rubber
Belt Conveyor—Extruder—Automatic Clay Slug Cutter—Green Brick(Adobe) Cutter—Firing & Drying –Final Product
bMain Technical Parameter
| Item | model | Capacity(pcs/10hrs) | Motor (kw) |
Size (mm) |
weight (t) |
| Brick making machine | XK400 | 100000--120000 | 55 |
3500*1800*1500 | 4.3 |
2.MSZ60-8A Multi-Functional High Pressure High Strength Brick Pressing Machine
The Low of Complete Line:
Mixer- Belt conveyor- Grind mill-Material tank-Belt conveyor-Feeder-Brick making machine
b. Major Technological Data
| Producing capacity(pcs/h) | 2000 |
| Nominal pressure (KN) | 600 |
| Former number (unit) | 8 |
| Rotating speed of crankshaft (r/min) | 33.3 |
| Rotating speed of gyroscope wheel (r/min) | 4.17 |
| Motor for the host machine | Y160l-6.11KW |
| V-belt(mm) | 5-Btype 4500mm |
| Motor for feeder | Y100K2-4.3KW |
| V-belt(mm) | 3-A type 1650mm |
| Overall dimensions(mm) | 3500*1800*2250 |
| Gross weight(kg) | 5800 |
Block Making Machine
a. The flow of complete line:
PLDE-1200 electronic material feeder---- JS-500 double shaft blender---- Material tank----ST-500 belt conveyor----Plate conveyor----Block machine--- Plate discharger---- Stacking machine
| Producing capacity | 15seconds/mould | specifications |

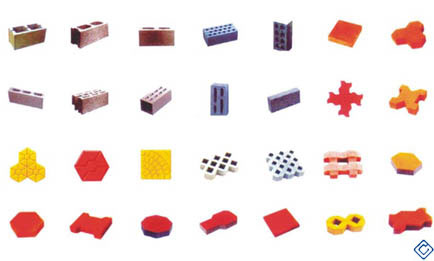

| Vibration frequency | 3920times/min | 390*190*190 air block,6/mould, 240*115*90 small air block,21/ mould 240*115*53 standard brick,39/mould 250*250*60 road brick,6/mould 225*111*60 road brick 21/mould 200*100*60 road brick,24.mould |
| Pressure of oil pump | 30Mpa/cm | |
| Maximum pressure | 230KN | |
| Electric motor | Y180L-4-22kw | |
| Gross weight | 11.5t | |
| Overall dimensions | 1090*2100*2770mm |
