Series of small scale oil press

These small scale screw type oil presses are advanced oil processing machinery, characterized by their high oil output rate with good quality, simple design, easy to use and continuous operation. They can use for various raw material, such as peanut, beans, rape and cotton seeds, sesame, olive, sunflower, coconut, grass seed etc.

Model
Capacity
Power
Weight
Outside dimension
pictrue
YZS-68oil press
50kg/h
5.5kw
140kg
920*490*780mm
YZS-80oil press
100kg/h
5.5kw
330kg
1320*540*1020mm
YZS-95oil press
150-200kg/h
7.5-11kw
620 kg
1620*630*1260mm
YZS-100oil press
200kg/h
7.5kw
80 kg
1640*640*1200mm
YZS-120oil press
250kg/h
11kw
650 kg
1820*630*1300mm
ZX105oil press
200-300kg/h
11kw
520 kg
1870*640*1200mm

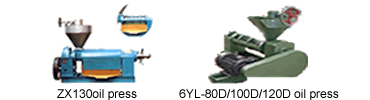

ZX130oil press
400-500kg/h
18.5kw
820 kg
1930*680*1480mm
YZS-80Doil press
100kg/h
5.5kw
450kg
1320*1300*1020mm
YZS-100Doil press
200kg/h
7.5kw
610kg
1640*1300*1200mm
YZS-120Doil press
250kg/h
11kw
780kg
1940*1300*1300mm


Series of large scale oil press/Oil Expeller

This large scale oil machine is suitable for extraction of vegetable oils from such oil-bearing materials as rape seed, peanuts, sesame seed, cotton seed, soy beans, coconuts, tea seed, sunflower seed, etc. The model LYZX18 cold-pressing expeller is a new generation of low-temperature screw oil press. Oil processed with this expeller is characterized by light color, top quality and rich nutrition and conforms to the standard of international market. It is also the main machine for making protein power of peanut, soybean, sunflower kernel etc.

Model
Capacity
Power
Weight
Outside dimension
Pictrue
LYZX18oil press
6-10t/d
27.2kw
3500kg
3176*1850*2600mm
200A-3oil press
8-12t/d
18.5kw
5000kg
2850*1850*3270mm
ZX24oil press
20t/d
36.5kw
8500kg
3200*1850*3600mm
ZX28oil press
50t/d
45kw
11500kg
3700*1920*3850mm
ZX32/ZY32oil press
85-110t/d
90/110kw
11000 kg
4100*2720*3850mm
202-3oil press
45-50t/d
30kw
5500 kg
2900*1850*3640mm
